ZS-series Vibrating Shifter

Zhejiang Aligned Machinery Co., Ltd.
Contact Now
  • Product Details
  • Company Profile

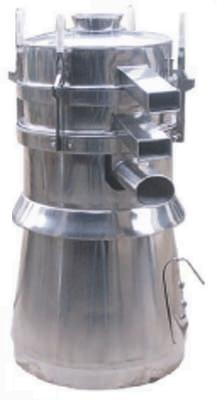

ZS-series Vibrating Shifter

Application:
This series are suitable for the flow process, and are ideal equipments used for unequal granules through sieve. It consists of hopper, vibrating chamber connecting shaft, and electromotor. There are eccentric wheel, rubber, software, main spindle and bearing in the vibrating chamber. When the adjustable eccentric hammer is passing the centre of main spindle drive by motor, it may be out of balance and causes eccentricity forcing the materials to from orbital eddy. The amplitude of the hammer adjuster may be regulated by changing the types of material and the messes of sieves.
Characteristics:
It is compact; cabinet; dustless; noise-fess; high-output, energy saving and easy to move and maintain.
Main Technical parameters:
Model
ZS-350
ZS-515
ZS-650
Production capacity (kg/h)
60-200
100-500
180-1200
Size of output granules (mesh)
12-200
Total power (kw)
0.55
0.75
1.5
Speed of principal axis (rpm)
1380
1370
Overall dimension (mm) (L×W×H)
540×540×1060
710×710×1290
880×880×1350
Weight (kg)
100
180
250
